▼ Summary
A high efficient packaging equipment, TIE-GB One-piece Carton Wrapping Machine is designed and manufactured with high automatic operation based on the Hot-melt Adhesive Glue. It can pack your products within customized carton sheet. The products after packaging are safely protected and beautiful in appearance.
▼ Features Of Equitments
1. Specially design for carton packing for beer, beverage, bottled Water, medicament, food ect bottle production line. Carton wrapping saves 1/5 cost thantraditional packing type.
2. Machine adopts convergence system and touch screen to control every function of operation, can input, amend and memory different packing specification data.
3. This machine adopts cardboard one-time forming, unique technology of pressing carton, carton forming more solid with beautiful packing effect, minimum labor intensity,the minimum requirements for cardboard.
4. Adopt known hot melt equipment, easy for operation, durable. Packing effect is artistic and easy for store and transportation.
5. Delicate figure and save space and safe.
▼ Equipment Pictures

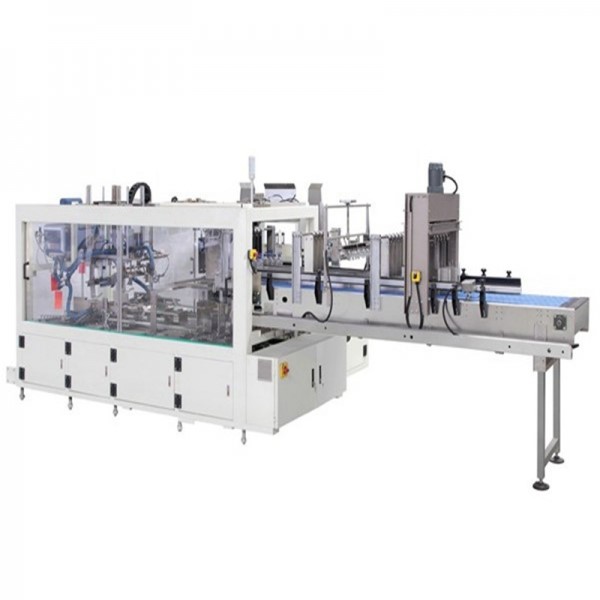

TIE-GB35 One-piece Carton Wrapping Machine
TIE-GB25 One-piece Carton Wrapping Machine
▼ Technical Specification
Mode | TIE-GB35 One-piece Carton Wrapping Machine | TIE-GB25 One-piece Carton Wrapping Machine |
Packing Products | 380ml/500ml PET Bottles Or Cans Of Drinking Water, Beverages And Other Products (Or Other Similar Container Products) | |
Maximum Packing Carton Size | 550<L+W+H<1000 mm | / |
Maximum Carton Molding Size | / | 450mm(L) x340mm(W)x330mm(H) (or special specification) |
Minimum Carton Molding Size | / | 260mm (L)x165mm(W)x90mm(H) |
Machine Size | 5130*2600*1800 mm | 6295*2665*2124 mm |
Speed | 30 cartons/min | 25 cartons/min |
Power/Voltage | 380V /7kW | 380V /8kW |
Hot Melt Adhesive Curing Time | 1.5~2 seconds | 1.5~2 seconds |
Working Air Pressure | 0.6-0.8 Mpa | |
Air Consumption | 600 NL /min | 800 NL /min |
Packing Form | One-piece Carton Wrapping Package (Hot Melt Adhesive) | |
Packing Material | Cardboard | |
