▼ Summary

The equipment is mainly used in high-speed beverage packaging production line, suitable for single side or whole circle labeling. Compared with the conventional sleeve marking machine, it has the characteristics of high efficiency, low cost, low energy consumption, and the packaging effect is better than the sleeve marking.

▼ Equipment Advantages

The design concept of full servo reduces mechanical transmission to the greatest extent, and more servo motors are used to drive independently, which brings a lot of benefits, less noise, less lubrication points, more convenient maintenance, and more stable operation of the machine. Labeling machine adopts clean design, the operator is convenient to clean and maintain the cutter roll, vacuum drum, glue roller. The glue tank has teflon coating to prevent the glue from contacting directly with the aluminum alloy glue tank, prolong the glue carbonization time and ensure the stability of the glue.

▼ Features Of Equipment

1. The machine mainly adopts SUS304 stainless steel and aluminum alloy material.

2. The host adopts advanced servo drive, high speed, high positioning accuracy.

3. Photoelectric are imported famous brands, high stability, accurate detection.

4. PLC with man-machine interface control, simple and clear operation.

5. Host position up and down, front and back, parallelism, verticality can be flexibly adjusted.

6. The speed of conveyor belt can be digitally adjusted by touch screen.

7. The equipment can be operated independently on a single machine or connected to a production line.

 ▼ Principle Of Labeling

When a bottle enters the rotating star wheel, the controller analyzes the position of the bottle. At a reasonable position, the servo motor on the label station starts to pull the label accurately, and the tension arm tights the label. The label plate starts to automatically release the label according to the signal analysis. Using vacuum adsorption, the cutter roller cuts the label according to the standard length, and transfers the label to the vacuum drum. Glue is applied to the front edge of the label paper and the tail edge of the label paper through the stainless steel rubber roller. The bottle wraps the label around the body of the bottle, rubbing the label cloth so that the end of the label and the head of the label overlap. At this point, the labeling process is completed.

▼ Technical Specification

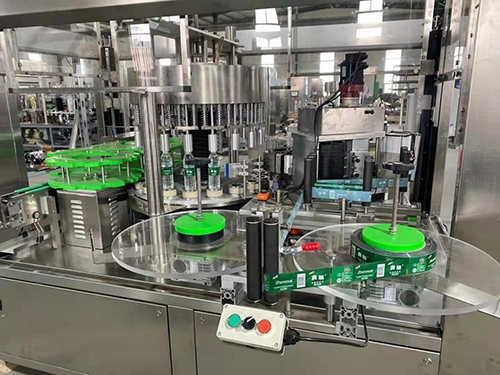

▼ Equipment Pictures
